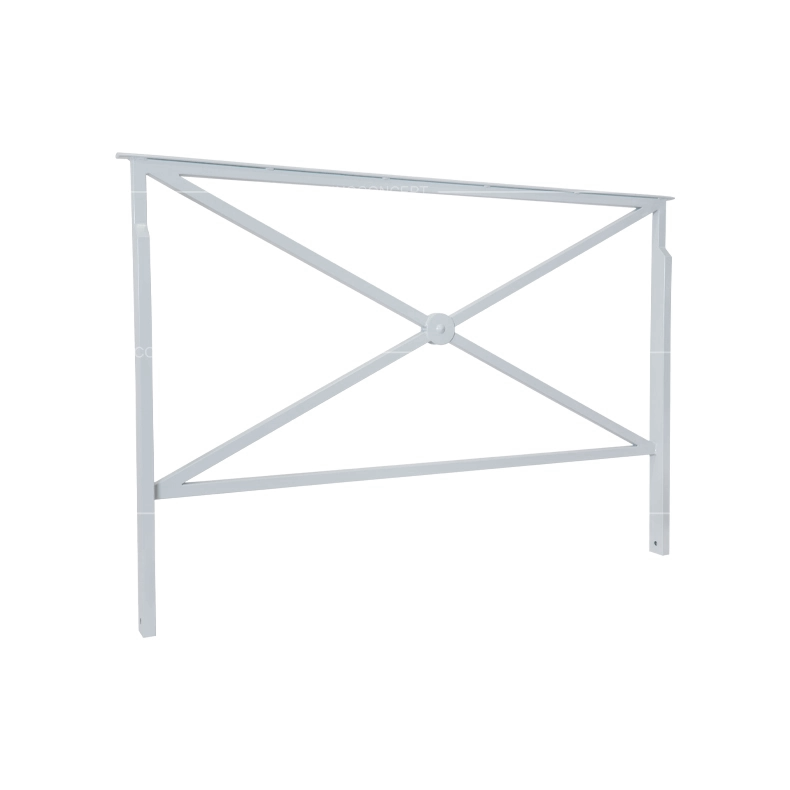

Cross Pattern Pedestrian Guardrail

Steel Structure: Mild steel construction with reinforced uprights for structural strength and stable outdoor use.
Welded Construction: Ground welded joints support a cleaner finish and help reduce rough edges.
Closed Centre Disc: Sealed centre disc to help limit water retention and reduce corrosion risk around the centre detail.
Corrosion Protection: Zinc-rich powder primer as standard, with hot-dip galvanising available for higher-exposure projects and longer service life.
Anti-UV Powder Coating: Applied in standard RAL colours for project appearance matching and outdoor colour stability.

Catalogue.pdf

(File size 8.3 MB)

Request Bulk Quote

Technical Specifications For Cross Pattern Pedestrian Guardrail

Cross Pattern Pedestrian Guardrail
Available lengths	840 mm (33.1 in) 1640 mm (64.6 in)
Height	1100 mm (43.3 in)
Material	Mild steel
Finish	Zinc-rich powder primer + UV-resistant powder coating
Weight	840 mm version: 11 kg 1640 mm version: 14 kg (Approx. weight. May vary due to manufacturing tolerances or recycled material content.)

Cross Pattern Pedestrian Guardrail
Compliance	European standards
HS Code (Global)	730890
HS Code (EU)	7308909890
Country of Origin	China

Cross Pattern Pedestrian Guardrail
Packing	Galvanised steel pallet
Quantity per Packing Unit	50 pieces
Packing Unit Size	840 mm version: 900 × 1100 × 2500 mm 1640 mm version: 1100 × 1700 × 2500 mm
Packing Unit Weight	840 mm version: 570 kg 1640 mm version: 730 kg

Cross Pattern Pedestrian Guardrail
MOQ	1 x full container load, mixed items allowed
Production Time	20–25 days after deposit
Warranty	1 year against manufacturing defects

Cross Pattern Pedestrian Guardrail for Public Street Layouts

The cross pattern pedestrian guardrail is a steel street barrier for separating pedestrian areas from vehicle routes.

It is available in 840 mm and 1640 mm lengths, with zinc-rich powder primer as standard or hot-dip galvanising for higher-exposure projects. Anti-UV powder coating is applied in standard RAL colours to suit outdoor street furniture projects.

This model uses a classic cross pattern for standard pedestrian guardrail ranges. It is suitable for public streets, pavements and urban spaces that need a simple, familiar street furniture style.

Full range of cross pattern pedestrian guardrail including 840 mm and 1640 mm steel frames

Other Pedestrian Guardrail Styles

These related guardrail styles can be supplied with the cross pattern model to support a wider pedestrian guardrail range.

Picture	Model	Ideal For
	Diamond Pattern Pedestrian Guardrail	A diamond cross-tube design for streets that need a more detailed guardrail style.
	Ball-Top Pedestrian Guardrail	A rounded top design for traditional public spaces and softer visual detail.
	Shanghai Style Pedestrian Guardrail	A distinctive style for urban layouts that need stronger visual identity.

Contact Our Team for Cross Pattern Pedestrian Guardrail Supply

Contact our team for quotation, model selection and supply support for cross pattern pedestrian guardrails.
