Technical Specifications For 5-Channel Modular Cable Ramp
| Parameter | Middle Section | The Ramps for Middle Section |
|---|---|---|
| Overall Dimensions |
|
|
| Maximum Cable Diameter | Ø32 mm | - |
| Material |
|
|
| Weight |
|
|
(Note: Approx. weight. Slight batch variation due to recycled materials.)
| ||
| Maximum Load Capacity | 9,000 kg (20,000 lbs) per axle, such as Mercedes-Benz Atego and Volvo FMX | |
| Surface Texture & Anti-slip Features | Textured finish & non-slip surface | |
| Weather & UV Resistance | Excellent weather resistance and UV protection | |
| Usage Restrictions | Not compatible with forklifts | - |
| 5-Channel Modular Cable Ramp | ||
|---|---|---|
| Compliance | REACH compliant | |
| HS Code (Global) | 401699 | |
| HS Code (EU) | 4016999790 | |
| Country of Origin | China | |
| 5-Channel Modular Cable Ramp | ||
|---|---|---|
| Packing | Galvanised steel rack | |
| Quantity per Packing Unit |
| |
| Packing Unit Size |
| |
| Packing Unit Weight |
| |
| 5-Channel Modular Cable Ramp | ||
|---|---|---|
| MOQ | 1 x full container load, mixed items allowed | |
| Production Time | 20–25 days after deposit | |
| Warranty | 1 year against manufacturing defects | |

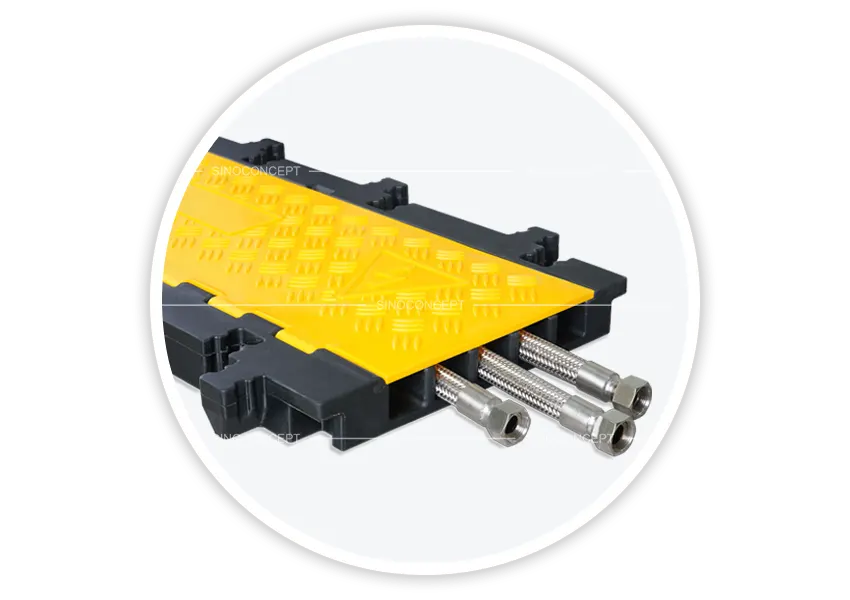

Flexible Modular Cable Ramp System
Our 5-channel modular cable ramp provides reliable cable protection in pedestrian and site environments. The modular design allows flexible layouts with secure interlocking connections.
The AMS system consists of modular middle sections and interchangeable ramps that can be configured for different cable volumes and pedestrian access requirements.

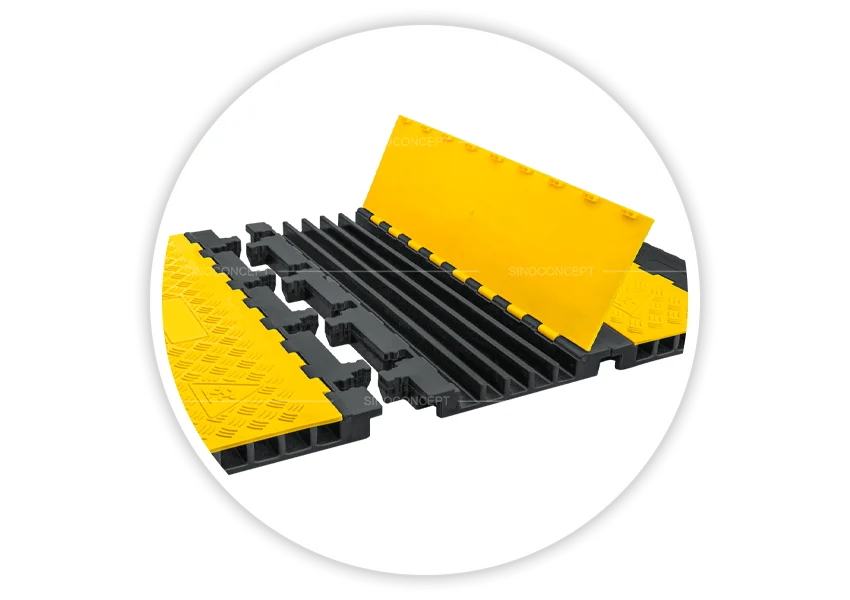

Core Module: Middle Section
The middle section is made from durable recycled rubber and forms the core of the Advanced Modular System.

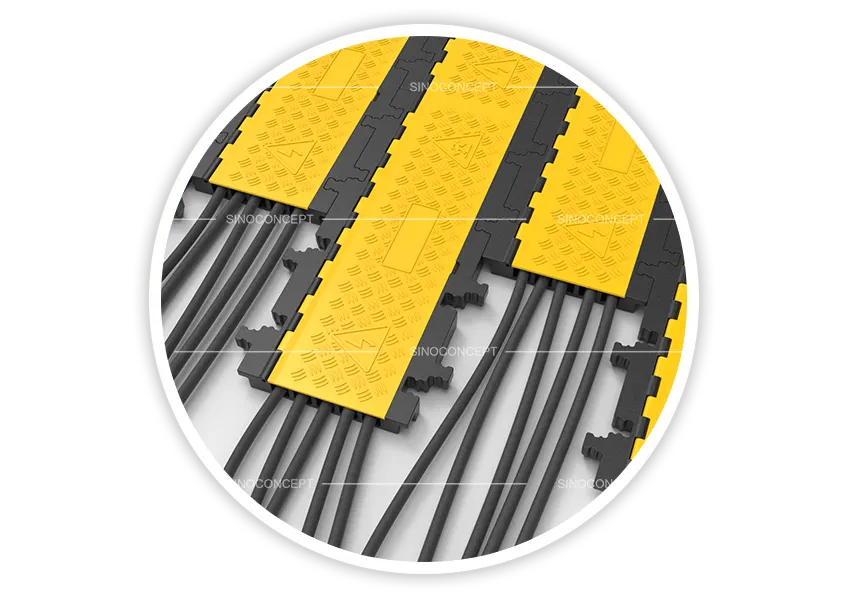

Multiple middle sections can be connected side by side to create wider runs with more cable channels for high-volume installations.
Sections can also be linked end to end for longer runs, with staggered connections available for added stability.

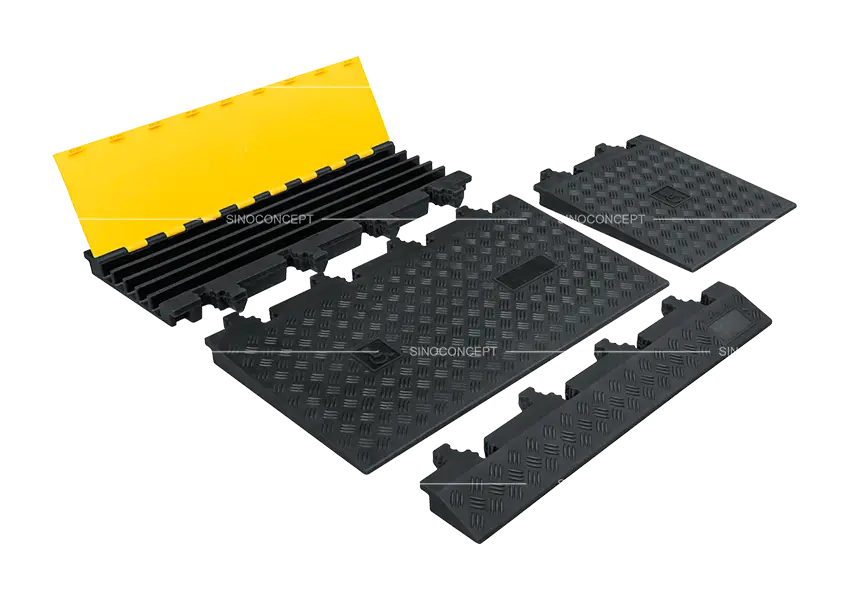

Three Ramp Choices
We supply three ramp types for different access requirements. All the ramps connect easily with the middle section and feature a non-slip surface for safer use.

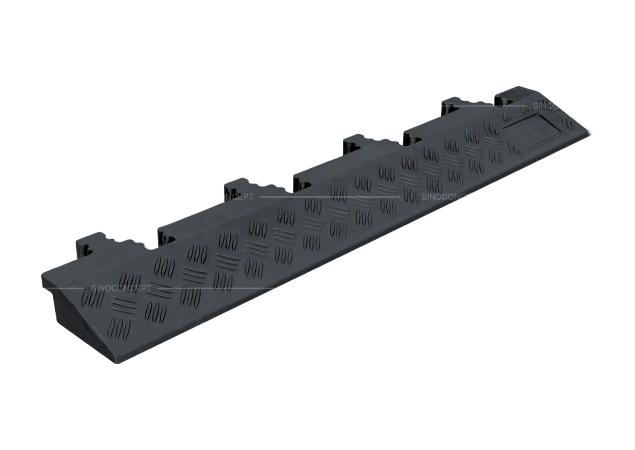

Standard Ramp
For general use. Non-slip tread improves grip in busy or wet areas and helps reduce trip risk.

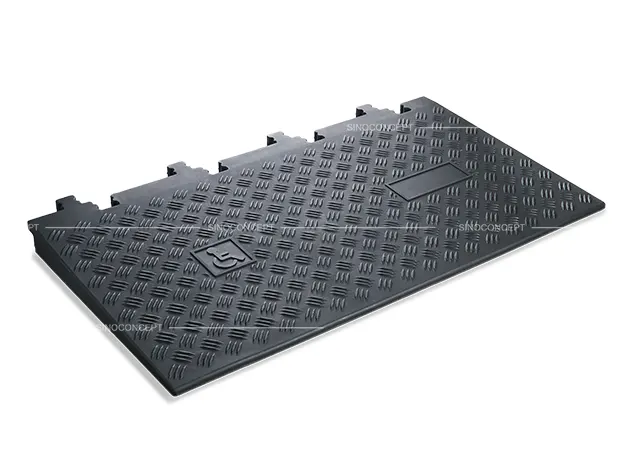

Gentle Slope Ramp
A gentler slope than the standard ramp, making it safer for wheelchair users and reducing trip risks.
Half Gentle Slope Ramp
Same low-gradient design as the gentle slope ramp, in half length. Connects to the middle section for a secure, space-saving layout.
H Connector for Linking with 5-Channel Cable Protectors
The rubber H connector links the modular ramp to the standard 5-channel cable ramp for a continuous run.
It supports gentle-slope transitions for wheelchair access without changing the main layout.
Request Specifications and Product Details
Contact our team to confirm specifications, MOQ, packing details, and lead time.
Configuration support is available for middle sections, ramps, and H connectors based on site layout and cable volume.
