View All Hoop Barriers and Lamp Post Protectors

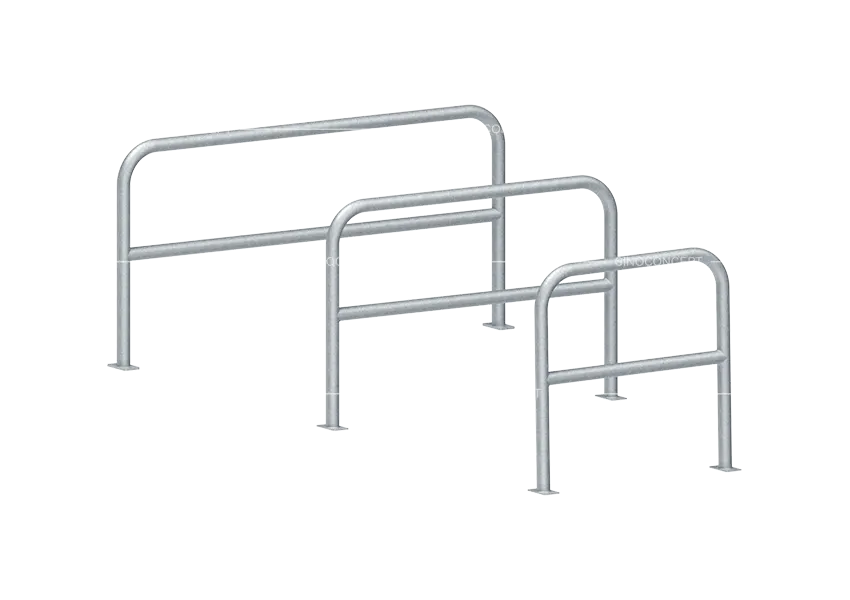

Hooped Perimeter Barrier With Crossbar

Mild Steel Tube Construction: Mild steel tube with hot-dip galvanised surface treatment for outdoor corrosion resistance and long service life.
Crossbar Design: The crossbar adds extra support and rigidity for boundary marking, walkway protection, and exposed site layouts.
Flexible Installation: Available in embedded and surface-mounted versions for different ground conditions and site requirements.
Three Lengths Available: Supplied in 1000 mm, 1500 mm, and 2000 mm sizes for different layout requirements.
Optional RAL Powder Coating: Standard RAL anti-UV powder coating available for project colour matching.

Catalogue.pdf

(File size 8.3 MB)

Request Bulk Quote

Technical Specifications For Hooped Perimeter Barrier With Crossbar

Version	Embedded Version	Surface Mounted Version
Available Lengths	1000 mm (39.4 in) 1500 mm (59 in) 2000 mm (79 in)
Height	Overall: 1300 mm (51.2 in) Above Ground: 1000 mm (39.4 in)	1000 mm (39.4 in)
Tube Diameter	Ø60 mm (Ø2.4 in)
Material	Mild steel tube
Finish	Fully hot-dip galvanised (after welding) + UV-resistant powder coating (available)
Weight	1000 mm: 12.5 kg 1500 mm: 15 kg 2000 mm: 18 kg	1000 mm: 11.5 kg 1500 mm: 14 kg 2000 mm: 17 kg
Weight	(Approx. weight. May vary due to manufacturing tolerances or recycled material content.)

Hooped Perimeter Barrier With Crossbar
Compliance	European standards
HS Code (Global)	730890
HS Code (EU)	7308909890
Country of Origin	China

Version	Embedded Version	Surface Mounted Version
Packing	Galvanised steel rack
Quantity per Packing Unit	76 Pcs	38 Pcs
Packing Unit Size	1000 mm: 1900 × 1100 × 2450 mm 1500 mm: 1900 × 1600 × 2450 mm 2000 mm: 1900 × 2100 × 2450 mm	1000 mm: 1100 × 1100 × 2450 mm 1500 mm: 1600 × 1100 × 2450 mm 2000 mm: 2100 × 1100 × 2450 mm
Packing Unit Weight	1000 mm: 960 kg 1500 mm: 1185 kg 2000 mm: 1410 kg	1000 mm: 460 kg 1500 mm: 580 kg 2000 mm: 690 kg

Version	Embedded Version	Surface Mounted Version
MOQ	1 x full container load, mixed items allowed
Production Time	20–25 days after deposit
Warranty	1 year against manufacturing defects

Hooped Perimeter Barrier With Crossbar for Boundary and Impact Protection

Sino Concept’s hooped perimeter barrier with crossbar is designed for boundary marking, walkway protection, and exposed site layouts where extra support is required.

Made from mild steel tube with hot-dip galvanised surface treatment, it is suitable for long-term outdoor use around car parks, service yards, building entrances, pedestrian areas, and commercial premises.

Additional Products for Pole and Column Protection

We also supply related protection products to support broader range coverage and combined orders for posts, columns, and other fixed structures.

Picture	Model	Ideal For
	Hooped Perimeter Barrier	Standard version for boundary marking, walkway protection, and perimeter control.
	Low-Level Hooped Perimeter Barrier	A lower version of the standard barrier, used to mark edges, guide people, and help stop cars from entering protected zones.
	Pole and Column Protector	A compact model for protecting columns, poles, and vertical structures.
	Lamp Post Protector Hoop	Protection for lamp posts, signage, fire hydrants, and similar fixed structures in busy public or commercial areas.

Contact Us for Steel Hoop Barriers

Contact our team to discuss sizes, mounting type, surface treatment, MOQ, lead time, and packing for hooped perimeter barriers with crossbar. We support bulk orders for UK and Europe.
