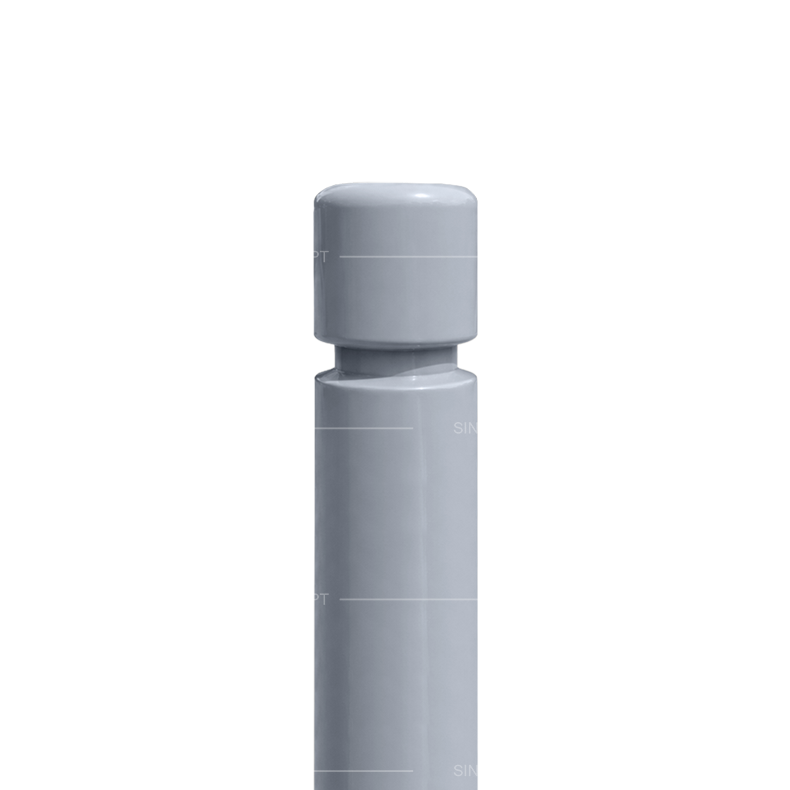

Single-Groove Bollard

Steel Body: Durable steel construction for better impact resistance and lower maintenance risk.
Ductile Cast Iron Top Cap (Ø76 mm only): Durable cast iron top cap with a smooth polished finish for long-term urban use.
Single-Groove Design: Clean groove detail for a simple, refined appearance.
Corrosion Protection: Zinc-rich powder primer as standard; hot-dip galvanising available for higher-exposure projects
DDA-Compliant Version: Designed with a 1.5 m height and a contrasting white top to improve visibility for visually impaired users.
Removable Installation: Optional removable socket for occasional access, repositioning or replacement.

Catalogue.pdf

(File size 8.3 MB)

Request Bulk Quote

Technical Specifications For Single-Groove Bollard

Version	Ø76 mm Version	Ø102 mm Version
Wall Thickness	3 mm (0.12 in)
Height	Overall: 1200 mm (47.2 in) / Above Ground: 900 mm (35.4 in) Overall: 1500 mm (59.1 in) / Above Ground: 1200 mm (47.2 in) Custom height available on request
Material	Body: Mild steel tube Head: Ductile cast iron	Mild steel tube
Finish	Zinc-rich powder primer + UV-resistant powder coating
Weight	1200 mm version: 5.5 kg 1500 mm version: 8.5 kg	1200 mm version: 8.5 kg 1500 mm version: 10.5 kg
Weight	(Approx. weight. May vary due to manufacturing tolerances or recycled material content.)
Removable Version	Available with a removable bollard socket for access, removal and replacement

Single-Groove Bollard
Compliance	European standards
HS Code (Global)	730890
HS Code (EU)	7308909890
Country of Origin	China

Version	Ø76 mm Version	Ø102 mm Version
Packing	Plywood crate
Quantity per Packing Unit	132 pieces	90 pieces
Packing Unit Size	1200 mm version: 1300 × 1100 × 1250 mm 1500 mm version: 1600 × 1100 × 1250 mm
Packing Unit Weight	1200 mm version: 765 kg 1500 mm version: 1135 kg	1200 mm version: 765 kg 1500 mm version: 950 kg

Single-Groove Bollard
MOQ	1 x full container load, mixed items allowed
Production Time	20–25 days after deposit
Warranty	1 year against manufacturing defects

Single-Groove Bollard for Pavement Protection and Access Control

Our single-groove bollard is designed for pavement protection, parking control and pedestrian area separation. It is available in 1.2 m standard and 1.5 m DDA-compliant versions with a contrasting white top for improved visibility.

Suitable for street furniture ranges requiring a simple decorative style, the single-groove profile offers a clean appearance for town centres, pedestrian areas and commercial streets.

Grey single-groove bollard with white DDA-compliant top for pedestrian area access control

Related Street Bollards

Single-groove bollards can be supplied with other street bollard styles in the same container, helping build a broader range.

Picture	Model	Ideal For
	Ball-Top Bollard	Rounded decorative top for pedestrian areas and public-facing spaces.
	3-Groove Bollard	More detailed groove design for streetscapes needing stronger visual definition.
	Decorative Bollard	For public areas where bollard design enhances the street layout.
	Removable Bollard Socket	Supports removable bollard setups for occasional access, repositioning or removal.

Request a Quote for Single-Groove Steel Bollard

Contact our team to request specifications, pricing, MOQ, packing details and lead time for single-groove steel bollards.
