Product Videos
Product Overview
A closer look at the product’s features and application.
Performance Test
See how the product performs under impact conditions.

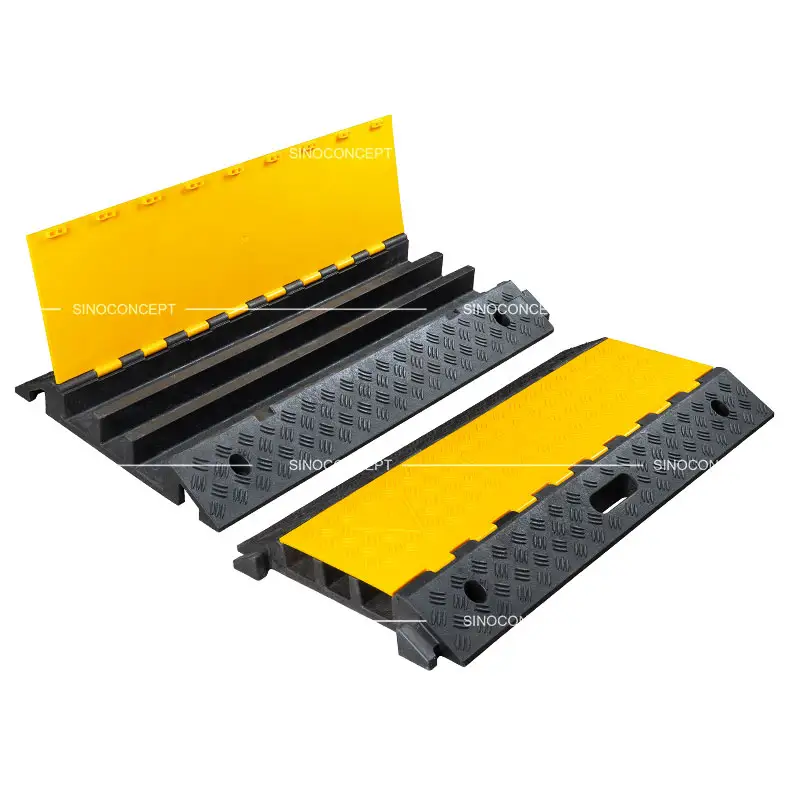

Technical Specifications For 3-Channel Cable Ramp
| Version | Standard Version | Heavy-duty Version |
|---|---|---|
| Overall Dimensions |
| |
| Maximum Cable Diameter | Ø 50 mm | |
| Material (Base) | Plastic-Rubber composite | Premium recycled rubber, no toxic smell |
| Material (Cover) | Polyethylene (PE) | |
| Weight | 16 kg | 18 kg |
(Note: Approx. weight. Slight batch variation due to recycled materials.)
| ||
| Maximum Load Capacity | 9,000 kg (20,000 lbs) per axle, such as Mercedes-Benz Atego and Volvo FMX | |
| Surface Texture & Anti-slip Features | Textured finish & non-slip surface | |
| Weather & UV Resistance | Excellent weather resistance and UV protection | |
| Usage Time | For temporary use or lighter-duty needs | For repeated use, tough jobs, and long-term setups |
| Recommended Application | Trade shows, community fairs, exhibitions | Outdoor festival with vehicle access, sports event |
| Strength and Durability | Lightweight, rigid, ideal for light-duty setups | Strong grip, high elasticity, built for heavy use |
| Cost | Good performance at a lower price | Higher cost, but designed for demanding environments |
| Version | Standard Version | Heavy-duty Version |
|---|---|---|
| Compliance | REACH compliant | |
| HS Code (Global) | 392690 | 401699 |
| HS Code (EU) | 3926909790 | 4016999790 |
| Country of Origin | China | |
| Version | Standard Version | Heavy-duty Version |
|---|---|---|
| Packing | Galvanised steel rack | |
| Quantity per Packing Unit | 58 pieces | 60 pieces |
| Packing Unit Size | 1030 × 1000 × 2200 mm | |
| Packing Unit Weight | 960 kg | 1075 kg |
| 3-Channel Cable Ramp | ||
|---|---|---|
| MOQ | 1 x full container load, mixed items allowed | |
| Production Time | 20–25 days after deposit | |
| Warranty | 1 year against manufacturing defects | |

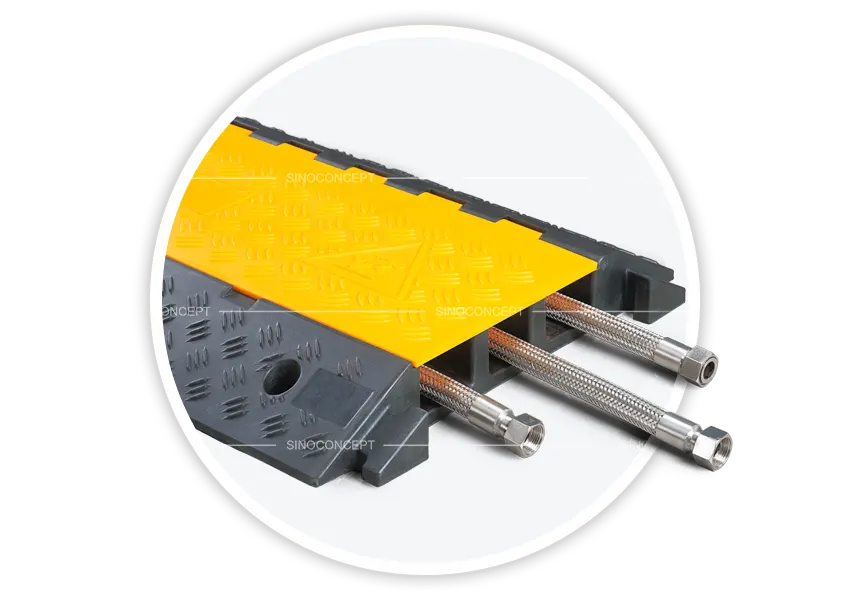

3-Channel Cable Ramp for Safe Cable Management
Sino Concept supplies 3-channel cable protectors for larger cable runs and heavier-duty site use.
The wider channels support more demanding cable layouts in construction sites, factories, and other high-traffic work areas, helping keep cable runs organised and reduce trip hazards.
Built with a high load capacity and strong structure, it is suitable for repeated use in demanding site conditions.
Products to Use With 3-Channel Cable Ramps
For 3-channel layouts, use corner pieces for turns and DDA ramps for smoother access.
| Picture | Model | Ideal For |
|---|---|---|
 | Corner layouts for 3-channel cable routes. | |
 | Access points for trolleys and wheelchairs. | |
Request a Quote for 3-Channel Cable Protectors
Send model(s), quantity, and delivery country to request a quote. Pricing, MOQ, lead time, and packing details can be confirmed.
