Hooped Perimeter Barrier

Mild Steel Tube Construction: Made from mild steel tube with hot-dip galvanising for long-term corrosion resistance in outdoor environments.
Installation Options: Available in embedded and surface-mounted versions for different site requirements.
Three Lengths Available: Supplied in 1000 mm, 1500 mm, and 2000 mm sizes for different layout needs.
Optional RAL Powder Coating: Anti-UV powder coating is available in standard RAL colours for project colour matching.

Catalogue.pdf

(File size 8.3 MB)

Mounting Type

Length

Material & Finish

Request Bulk Quote

Technical Specifications For Hooped Perimeter Barrier

Version	Embedded Version	Surface Mounted Version
Available Lengths	1000 mm (39.4 in) 1500 mm (59 in) 2000 mm (79 in)
Height	Overall: 1300 mm (51.2 in) Above Ground: 1000 mm (39.4 in)	1000 mm (39.4 in)
Tube Diameter	Ø60 mm (Ø2.4 in)
Material & Finish Option 1	Material: Mild steel tube Finish: Fully hot-dip galvanised + UV-resistant powder coating (available)
Material & Finish Option 2	Material: Pre hot-dip galvanised steel tube Finish: UV-resistant powder coating (available)	/
Weight	1000 mm: 10.5 kg 1500 mm: 12 kg 2000 mm: 13.5 kg	1000 mm: 8.5 kg 1500 mm: 10 kg 2000 mm: 11.5 kg
Weight	(Approx. weight. May vary due to manufacturing tolerances or recycled material content.)

Hooped Perimeter Barrier
Compliance	European standards
HS Code (Global)	730890
HS Code (EU)	7308909890
Country of Origin	China

Version	Embedded Version	Surface Mounted Version
Packing	Galvanised steel rack
Quantity per Packing Unit	76 Pcs	38 Pcs
Packing Unit Size	1000 mm: 1470 × 1100 × 2450 mm 1500 mm: 1600 × 1400 × 2450 mm 2000 mm: 2100 × 1400 × 2450 mm	1000 mm: 1100 × 1100 × 2450 mm 1500 mm: 1600 × 1100 × 2450 mm 2000 mm: 2100 × 1100 × 2450 mm
Packing Unit Weight	1000 mm: 810 kg 1500 mm: 940 kg 2000 mm: 1070 kg	1000 mm: 360 kg 1500 mm: 430 kg 2000 mm: 485 kg

Version	Embedded Version	Surface Mounted Version
MOQ	1 x full container load, mixed items allowed
Production Time	20–25 days after deposit
Warranty	1 year against manufacturing defects

Hooped Perimeter Barriers for Boundary Protection

Sino Concept’s hot-dip galvanised hooped perimeter barriers are available in different lengths to help mark site boundaries, secure perimeters, and protect pedestrian areas from vehicle impact.

Rust-resistant and low-maintenance, they are a practical choice for car parks, service yards, loading bays, and other busy commercial sites.

Surface-mounted versions are suitable for finished concrete or paved areas, while embedded versions are used for new groundworks or more permanent installations.

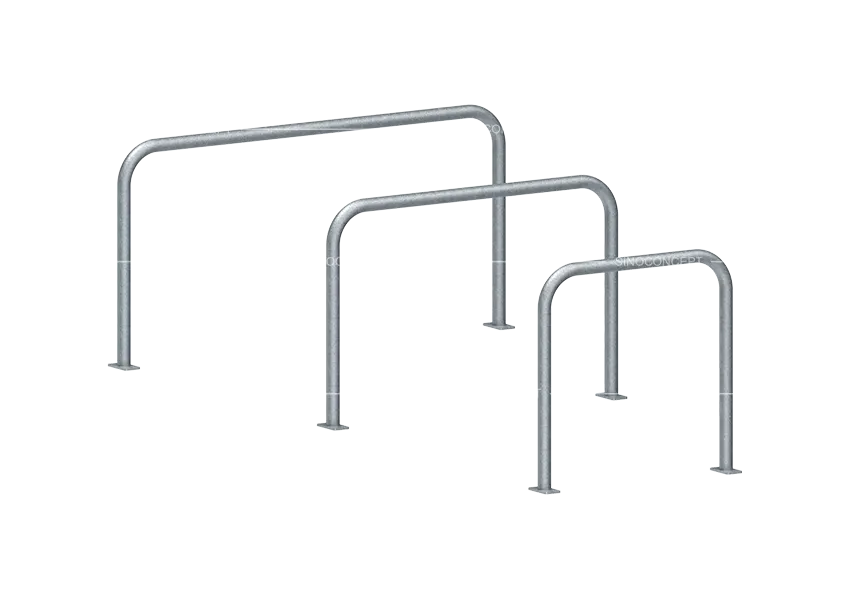

Multi-size hooped perimeter barrier models in galvanised steel for site boundary protection

Related Models for Broader Supply

We also offer a range of related products designed to protect posts, columns and other vertical structures in public or industrial spaces.

Picture	Model	Ideal For
	Hooped Perimeter Barrier With Crossbar	Stronger version for boundary marking and higher-impact protection.
	Low-Level Hooped Perimeter Barrier	A lower version for edge marking, pedestrian guidance, and controlled vehicle access.
	Pole and Column Protector	Compact model for protecting columns, poles, and sensitive equipment.
	Lamp Post Protector Hoop	Protection for lamp posts and similar fixed structures from vehicle impact.

Contact Us for More Details

Get in touch for product details, MOQ, lead time, and packing for hooped perimeter barriers. We support bulk orders for UK and Europe.
