S01 + L01 Floor Bike Rack

Material: Made from mild steel and hot-dip galvanised after welding, offering strong corrosion resistance and long-lasting performance outdoors.
Rack Layout: Designed for compact cycle parking layouts. High–low hoops maximise space efficiency in same-direction or alternating layouts.
L01 Locking System: Features a custom-colour PE cover for scratch protection and is compatible with standard bike locks for added security.
Installation: Free-standing ground placement is supported, with bolt-down fixing available when required.
Base Lengths: Available in multiple lengths to suit different site layouts and capacities.

Request Bulk Quote

Technical Specifications For S01 + L01 Floor Bike Rack

S01 + L01 Floor Bike Rack
Bases Length Configuration	2 Bikes: 700 mm base 3 Bikes: 1050 mm base 4 Bikes: 700 mm base + 700 mm base = 1400 mm 5 Bikes: 700 mm base + 1050 mm base = 1750 mm 6 Bikes: 1050 mm base + 1050 mm base = 2100 mm
Max. Tyre Width	45 mm (1.8 in)
Material	Mild steel
Surface Treatment	Fully hot-dipped galvanised (after welding)
Weight	Low hoop: 1.2 kg High hoop: 1.4 kg L01 lockable bike rack: 3 kg 700 mm base: 3.5 kg 1050 mm base: 4.5 kg (Note: Approx. weight. Slight batch variation due to recycled materials.)

S01 + L01 Floor Bike Rack
Compliance	European standards
HS Code (Global)	730890
HS Code (EU)	7308909890
Country of Origin	China

S01 + L01 Floor Bike Rack
Packing	Galvanised steel rack
Quantity per Packing Unit	Low hoop: 262 pieces - 20' (297 pieces - 40' HQ) High hoop: 184 pieces - 20' (210 pieces - 40' HQ) L01 lockable bike rack: 370 pieces - 20' (420 pieces - 40' HQ) 700 mm base: 194 pieces - 20' (220 pieces - 40' HQ) 1050 mm base: 166 pieces - 20' (188 pieces - 40' HQ)
Packing Unit Size	Low hoop: 1100 × 1100 × 2200 mm - 20' (1100 × 1100 × 2500 mm - 40' HQ) High hoop: 1100 × 1100 × 2200 mm - 20' (1100 × 1100 × 2500 mm - 40' HQ) L01 lockable bike rack: 1100 × 1400 × 2200 mm - 20' (1100 × 1400 × 2500 mm - 40' HQ) 700 mm base: 840 × 1140 × 2200 mm - 20' (840 × 1140 × 2500 mm - 40' HQ) 1050 mm base: 840 × 1140 × 2200 mm - 20' (840 × 1140 × 2500 mm - 40' HQ)
Packing Unit Weight	Low hoop: 350 kg - 20' (405 kg - 40' HQ) High hoop: 295 kg - 20' (340 kg - 40' HQ) L01 lockable bike rack: 1145 kg - 20' (1305 kg - 40' HQ) 700 mm base: 600 kg - 20' (685 kg - 40' HQ) 1050 mm base: 785 kg - 20' (885 kg - 40' HQ)

S01 + L01 Floor Bike Rack
MOQ	1 x full container load, mixed items allowed
Production Time	20–25 days after deposit
Warranty	1 year against manufacturing defects

S01+L01 Floor Bike Rack for Space-Efficient Cycle Parking

The S01 + L01 floor bike rack is designed for compact cycle parking layouts in public and commercial projects. It combines the compact S01 hoop layout with the L01 locking system to provide improved security over non-locking versions.

It’s made from mild steel and hot-dip galvanised after welding, providing strong rust resistance and lasting performance in all weather conditions.

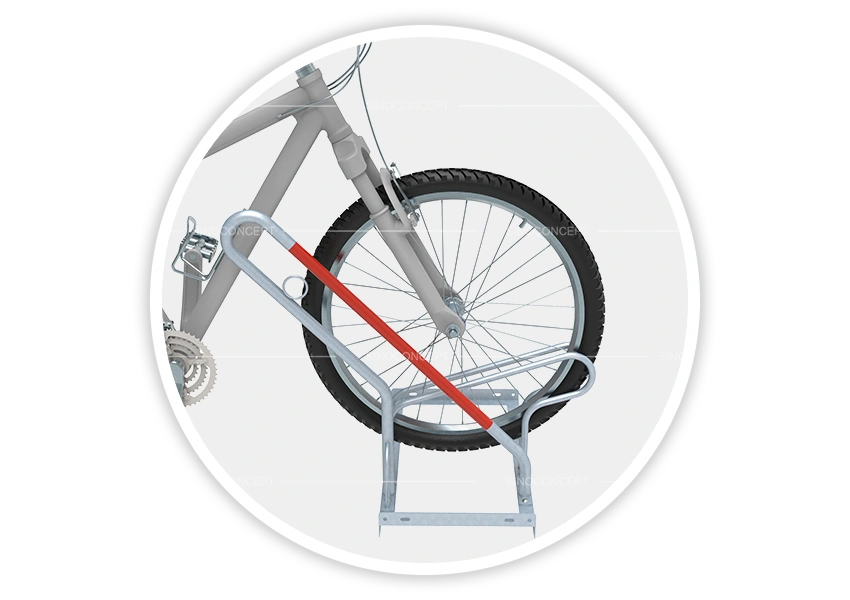

S01+L01 floor bike rack multi-bike unit with L01 locking systems, red PE cover and galvanised steel base frame

Same Rack, Different Locking System

See other floor bike rack models with different locking systems and support designs.

Picture	Model	Difference
	S01 Floor Bike Rack	Without locking system, a cost-effective choice for simple use.
	S01 + L02 Floor Bike Rack	A tall locking system helps secure the whole bike and fit most bike types.

The floor bike rack can be placed directly on the ground. For extra fixing, ground spikes can be used on soft ground, while L-shape angles are suitable for hard surfaces.

Contact Us for S01+L01 Floor Bike Rack Quotations

We provide product details, pricing, and custom support for distributor and project orders. Send your model, quantity, and delivery terms for a quotation.
