S02 Floor Bike Rack

Material: Made from mild steel and hot-dip galvanised after welding for outdoor corrosion resistance.
Design and Use: High-low hoops save space and reduce handlebar contact in managed parking areas.
Full-Wheel Support: Curved full-wheel support design helps keep bicycles upright and improves stability in managed parking areas.
Size Options: Modular base sections support flexible capacity planning. Standard sections can be combined to extend the run as required.
Easy Installation: Can be placed directly on the ground, with bolt-down fixing available when required.

Request Bulk Quote

Technical Specifications For S02 Floor Bike Rack

S02 Floor Bike Rack
Bases Length Configuration	2 Bikes: 700 mm base 3 Bikes: 1050 mm base 4 Bikes: 700 mm base + 700 mm base = 1400 mm 5 Bikes: 700 mm base + 1050 mm base = 1750 mm 6 Bikes: 1050 mm base + 1050 mm base = 2100 mm
Max. Tyre Width	55 mm (2.2 in)
Material	Mild steel
Surface Treatment	Fully hot-dipped galvanised (after welding)
Weight	Low hoop: 1.6 kg High hoop: 1.8 kg 700 mm base: 3.5 kg 1050 mm base: 4.5 kg (Note: Approx. weight. Slight batch variation due to recycled materials.)

S02 Floor Bike Rack
Compliance	European standards
HS Code (Global)	730890
HS Code (EU)	7308909890
Country of Origin	China

S02 Floor Bike Rack
Packing	Galvanised steel rack
Quantity per Packing Unit	Low hoop: 145 pieces - 20' (300 pieces /- 40' HQ) High hoop: 96 pieces - 20' (300 pieces - 40' HQ) 700 mm base: 194 pieces - 20' (220 pieces - 40' HQ) 1050 mm base: 166 pieces - 20' (188 pieces - 40' HQ)
Packing Unit Size	Low hoop: 950 × 2200 × 2200 mm - 20' (1000 × 2200 × 2500 mm - 40' HQ) High hoop: 950 × 2200 × 2200 mm - 20' (1000 × 2200 × 2500 mm - 40' HQ) 700 mm base: 840 × 1140 × 2200 mm - 20' (840 × 1140 × 2500 mm - 40' HQ) 1050 mm base: 840 × 1140 × 2200 mm - 20' (840 × 1140 × 2500 mm - 40' HQ)
Packing Unit Weight	Low hoop: 455 kg - 20' (525 kg - 40' HQ) High hoop: 495 kg - 20' (575 kg - 40' HQ) 700 mm base: 600 kg - 20' (685 kg - 40' HQ) 1050 mm base: 785 kg - 20' (885 kg - 40' HQ)

S02 Floor Bike Rack
MOQ	1 x full container load, mixed items allowed
Production Time	20–25 days after deposit
Warranty	1 year against manufacturing defects

S02 Floor Bike Rack for Managed Public Parking

Sino Concept’s S02 floor bike rack gives bicycles better wheel support with its full-wheel support design. Its high-low hoop layout can be used in single- or double-sided rows, helping reduce handlebar overlap in compact spaces.

Made from mild steel and fully hot-dip galvanised after welding, it supports tyres up to 55 mm wide. Connected base sections create longer rows for campus, residential, retail, workplace and public parking areas.

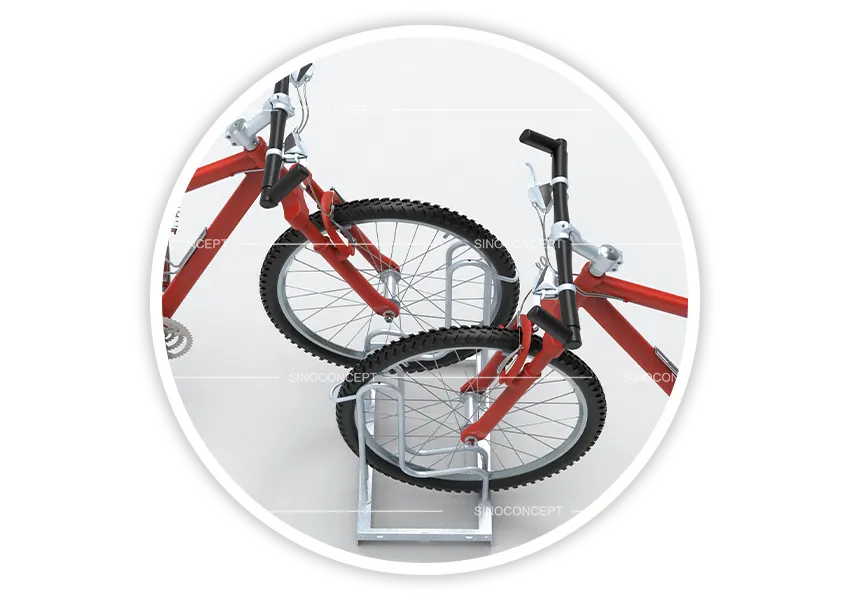

Two bicycles parked in an S02 floor bike rack, showing wheel-slot parking layout for public areas

Related Bike Rack Models and Accessories

We offer more choices of bicycle racks and stands to suit different locations, businesses, and security needs.

Picture	Model	Difference
	S02 + L01 Floor Bike Rack	Custom-colour PE cover for scratch protection, with a locking hole.
	S02 + L02 Floor Bike Rack	Strengthened locking system with a stronger locking hole for added security.

All floor bike rack models can be used directly on the ground. For added stability, choose ground spikes for soft ground or L-shape angles for hard surfaces.

Request Specs, MOQ and Lead Time for S02 Bicycle Rack

Contact our team to receive specifications, MOQ details, lead time, and export packing information for the S02 floor bike rack. Please share your required model, quantities, and delivery terms for a quotation.
