Two-bike cycle parking rack with S03 hoops and L02 locking system for frame security

S03 + L02 Floor Bike Rack

Material: Made from mild steel and hot-dip galvanised after welding to provide long-term outdoor corrosion resistance.
Design and Use: High–low hoop layout supports double-sided parking, helping optimise space and reduce handlebar contact.
Bike Spacing: Approximate 350 mm spacing is provided per bike position, with linkable units for flexible site layouts.
Security: L02 extra-high locking system provides better bike support and a stronger locking hole.
Installation: Can be placed directly on level ground, with optional bolt-down fixing available for permanent installation.

Request Bulk Quote

Technical Specifications For S03 + L02 Floor Bike Rack

S03 + L02 Floor Bike Rack
Bases Length Configuration	2 Bikes: 700 mm base 3 Bikes: 1050 mm base 4 Bikes: 700 mm base + 700 mm base = 1400 mm 5 Bikes: 700 mm base + 1050 mm base = 1750 mm 6 Bikes: 1050 mm base + 1050 mm base = 2100 mm
Max. Tyre Width	55 mm (2.2 in)
Material	Mild steel
Surface Treatment	Fully hot-dipped galvanised (after welding)
Weight	Low hoop: 1 kg High hoop: 1.1 kg L02 lockable bike rack: 4.5 kg 700 mm base: 3.5 kg 1050 mm base: 4.5 kg (Note: Approx. weight. Slight batch variation due to recycled materials.)

S03 + L02 Floor Bike Rack
Compliance	European standards
HS Code (Global)	730890
HS Code (EU)	7308909890
Country of Origin	China

S03 + L02 Floor Bike Rack
Packing	Galvanised steel rack
Quantity per Packing Unit	Low hoop: 130 pieces - 20' (130 pieces - 40' HQ) High hoop: 130 pieces - 20' (130 pieces - 40' HQ) L02 lockable bike rack: 136 pieces - 20' (155 pieces - 40' HQ) 700 mm base: 194 pieces - 20' (220 pieces - 40' HQ) 1050 mm base: 166 pieces - 20' (188 pieces - 40' HQ)
Packing Unit Size	Low hoop: 1000 × 2200 × 2200 mm - 20' (1000 × 2200 × 2400 mm - 40' HQ) High hoop: 1000 × 2200 × 2200 mm - 20' (1000 × 2200 × 2400 mm - 40' HQ) L02 lockable bike rack: 1100 × 1400 × 2200 mm - 20' (1100 × 1400 × 2500 mm - 40' HQ) 700 mm base: 840 × 1140 × 2200 mm - 20' (840 × 1140 × 2500 mm - 40' HQ) 1050 mm base: 840 × 1140 × 2200 mm - 20' (840 × 1140 × 2500 mm - 40' HQ)
Packing Unit Weight	Low hoop: 200 kg - 20' (200 kg - 40' HQ) High hoop: 225 kg - 20' (225 kg - 40' HQ) L02 lockable bike rack: 650 kg - 20' (745 kg - 40' HQ) 700 mm base: 600 kg - 20' (685 kg - 40' HQ) 1050 mm base: 785 kg - 20' (885 kg - 40' HQ)

S03 + L02 Floor Bike Rack
MOQ	1 x full container load, mixed items allowed
Production Time	20–25 days after deposit
Warranty	1 year against manufacturing defects

Durable S03 + L02 Cycle Parking Rack for Outdoor Use

Our S03 + L02 is a compact cycle parking rack for public and commercial sites. The high–low hoop layout supports double-sided parking while optimising space and reducing handlebar contact.

The L02 locking system has an extra-high structure to provide better bike support and a stronger locking hole for added security. Made from mild steel and hot-dip galvanised after welding, it provides long-term corrosion resistance for outdoor installations.

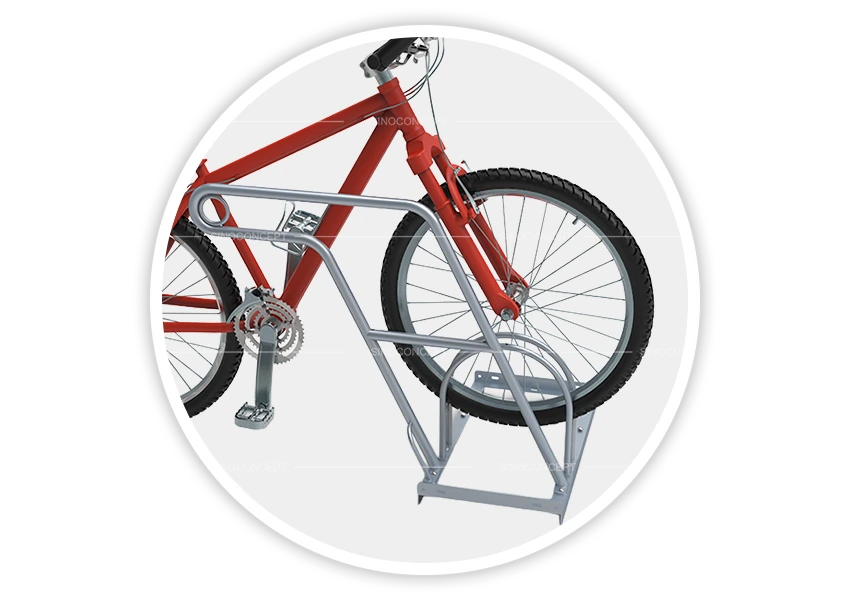

S03+L02 floor bike rack with L02 locking systems, double-sided bays, and hot-dip galvanised steel for outdoor use

Related Models and Accessories

Related models are available to match site layout, capacity, and locking requirements.

Picture	Model	Difference
	S03 Floor Bike Rack	Double-sided layout without locking system.
	S03 + L01 Floor Bike Rack	Adds wheel locking for extra security.

All the floor bike racks can be placed directly on the ground. For firmer installation, use ground spikes on soft ground and L-shape angles on hard surfaces.
