Technical Specifications For 5-Channel Cable Protector Corner
| 5-Channel Cable Protector Corner | ||
|---|---|---|
| Overall Dimensions |
| |
| Maximum Cable Diameter | Ø32 mm | |
| Angle | 45° | |
| Material (Base) | Premium recycled rubber, no toxic smell | |
| Material (Cover) | Polyethylene (PE) | |
| Weight | 7.5 kg (Approx. weight. May vary due to manufacturing tolerances or recycled material content.) | |
| Maximum Load Capacity | 9,000 kg (20,000 lbs) per axle | |
| Surface Texture & Anti-slip Features | Textured finish & non-slip surface | |
| Weather & UV Resistance | Excellent weather resistance and UV protection | |
| Usage Restrictions | Not compatible with forklifts due to rigid wheels that may damage or dislodge the lid. | |
| 5-Channel Cable Protector Corner | ||
|---|---|---|
| Compliance | REACH compliant | |
| HS Code (Global) | 401699 | |
| HS Code (EU) | 4016999790 | |
| Country of Origin | China | |
| 5-Channel Cable Protector Corner | ||
|---|---|---|
| Packing | Plywood crate | |
| Quantity per Packing Unit | 68 pieces | |
| Packing Unit Size | 1100 × 1100 × 1100 mm | |
| Packing Unit Weight | 535 kg | |
| 5-Channel Cable Protector Corner | ||
|---|---|---|
| MOQ | 1 x full container load, mixed items allowed | |
| Production Time | 20–25 days after deposit | |
| Warranty | 1 year against manufacturing defects | |

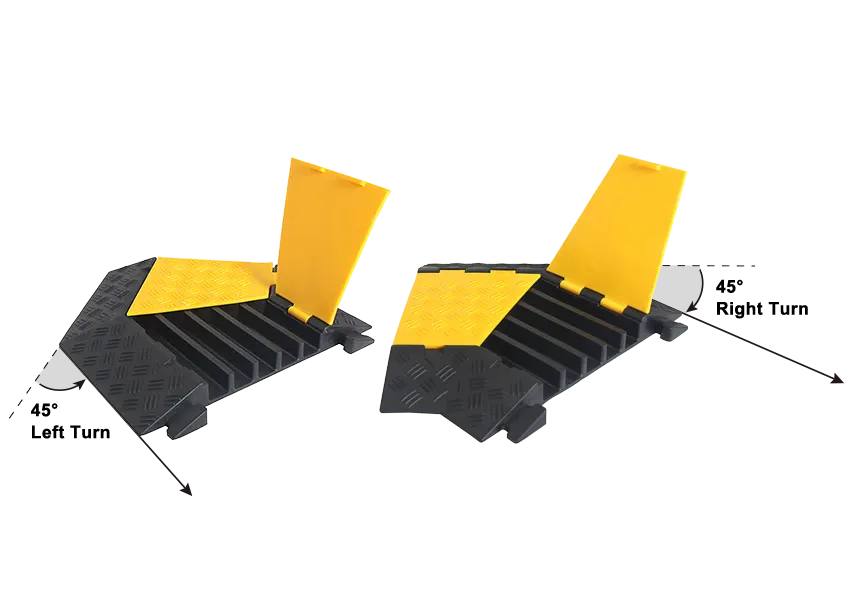

5-Channel Cable Protector Corners for 45° Cable Routing
Used when cable ramp runs require left or right turns in higher cable-density layouts.
Each piece fits securely with Sino Concept’s 5-channel cable ramp, keeping cable groups protected while maintaining the same load capacity and grip.
- Corner types: Left and right corner pieces for cable ramp layouts
- Visibility: Bright yellow lid for clearer on-site visibility
- Surface: Non-slip tread for safer crossings on busy sites
Contact Us for Pricing and Order Details
Contact our team to confirm specifications, MOQ, packing details, lead time, and pricing for cable protection products.
