Technical Specifications For 5-Channel Cable Ramp
| Version | Standard Version | Heavy-duty Version |
|---|---|---|
| Overall Dimensions |
| |
| Maximum Cable Diameter | Ø32 mm | |
| Material (Base) | Plastic-Rubber composite | Premium recycled rubber, no toxic smell |
| Material (Cover) | Polyethylene (PE) | |
| Weight | 13 kg | 14 kg |
(Approx. weight. May vary due to manufacturing tolerances or recycled material content.)
| ||
| Maximum Load Capacity | 9,000 kg (20,000 lbs) per axle, such as Volkswagen Transporter and Peugeot Boxer | |
| Surface Texture & Anti-slip Features | Textured finish & non-slip surface | |
| Weather & UV Resistance | Excellent weather resistance and UV protection | |
| Usage Time | A practical choice for temporary use or lighter-duty needs | Better suited for repeated use, tough jobs, and long-term setups |
| Recommended Application | Trade shows, community fairs, exhibitions | Outdoor festival with vehicle access, sports event |
| Strength and Durability | Lightweight, rigid, ideal for light-duty setups | Strong grip, high elasticity, built for heavy use |
| Cost | Good performance at a lower price | Higher cost, but designed for demanding environments |
| Version | Standard Version | Heavy-duty Version |
|---|---|---|
| Compliance | REACH compliant | |
| HS Code (Global) | 392690 | 401699 |
| HS Code (EU) | 3926909790 | 4016999790 |
| Country of Origin | China | |
| Version | Standard Version | Heavy-duty Version |
|---|---|---|
| Packing | Galvanised steel rack | |
| Quantity per Packing Unit | 76 pieces | 82 pieces |
| Packing Unit Size | 1030 × 1000 × 2200 mm | |
| Packing Unit Weight | 1005 kg | 1175 kg |
| Version | Standard Version | Heavy-duty Version |
|---|---|---|
| MOQ | 1 x full container load, mixed items allowed | |
| Production Time | 20–25 days after deposit | |
| Warranty | 1 year against manufacturing defects | |

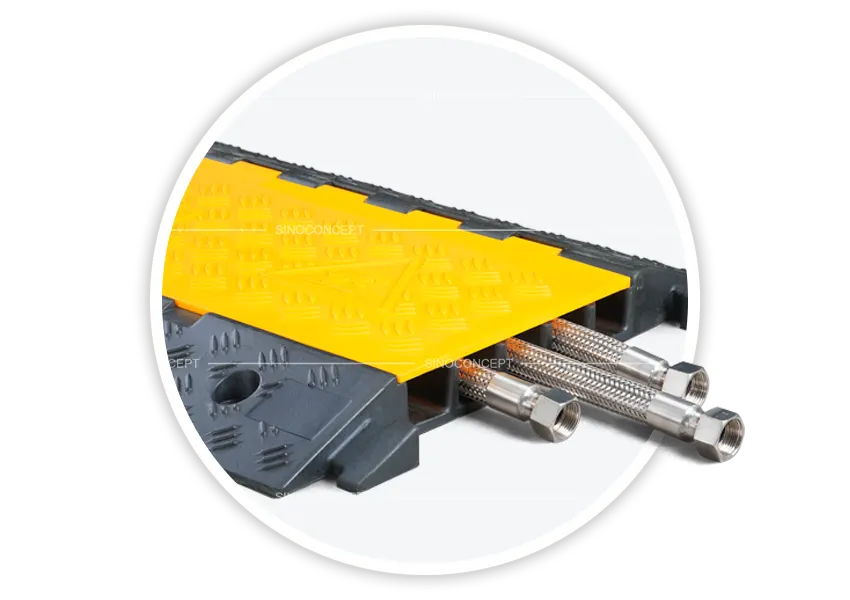

5-Channel Cable Ramp for Multi-Cable Protection
Sino Concept supplies 5-channel cable ramps for routing and protecting multiple cables in a single run.
The built-in handle allows easier one-person handling, while the textured surface and yellow lid help improve visibility and safer use on site.
With a high load rating, they are suitable for vehicle and foot traffic areas in events, construction sites, warehouses, and industrial locations.
5-Channel Cable Ramp Matching Products
DDA ramps, modular ramps and corner pieces help complete 5-channel cable layouts for access, walking areas and turns.
| Picture | Model | Ideal For |
|---|---|---|
 | Route changes where cables need to run around corners. | |
 | Safer crossing areas for pedestrians, trolleys and wheelchairs. | |
 | Wider or longer walking platforms for complex cable layouts. | |
Request a Quote for 5-Channel Cable Ramp
Send us the model(s), required quantity, and delivery country. Our team will confirm pricing, MOQ, lead time, and packing details based on your enquiry.
