S02 + L02 Floor Bike Rack

Durable material: Made from mild steel and hot-dip galvanised after welding for long-term outdoor corrosion resistance.
Compact High–Low Design: Alternating high–low hoop layout reduces handlebar interference and improves parking density.
Secure and Stable Parking: Extra-high bike support with a reinforced eyelet for secure locking.
Easy to Install: Can be placed on the ground, with mounting hardware available for bolt-down fixing when required.
Flexible Base Length: Base sections can be linked to extend the parking run according to project requirements.

Request Bulk Quote

Technical Specifications For S02 + L02 Floor Bike Rack

S02 + L02 Floor Bike Rack
Bases Length Configuration	2 Bikes: 700 mm base 3 Bikes: 1050 mm base 4 Bikes: 700 mm base + 700 mm base = 1400 mm 5 Bikes: 700 mm base + 1050 mm base = 1750 mm 6 Bikes: 1050 mm base + 1050 mm base = 2100 mm
Max. Tyre Width	55 mm (2.2 in)
Material	Mild steel
Surface Treatment	Fully hot-dipped galvanised (after welding)
Weight	Low hoop: 1.6 kg High hoop: 1.8 kg L02 lockable bike rack: 4.5 kg 700 mm base: 3.5 kg 1050 mm base: 4.5 kg (Note: Approx. weight. Slight batch variation due to recycled materials.)

S02 + L02 Floor Bike Rack
Compliance	European standards
HS Code (Global)	730890
HS Code (EU)	7308909890
Country of Origin	China

S02 + L02 Floor Bike Rack
Packing	Galvanised steel rack
Quantity per Packing Unit	Low hoop: 145 pieces - 20' (300 pieces - 40' HQ) High hoop: 96 pieces - 20' (300 pieces - 40' HQ) L02 lockable bike rack: 136 pieces - 20' (155 pieces - 40' HQ) 700 mm base: 194 pieces - 20' (220 pieces - 40' HQ) 1050 mm base: 166 pieces - 20' (188 pieces - 40' HQ)
Packing Unit Size	Low hoop: 950 × 2200 × 2200 mm - 20' (1000 × 2200 × 2500 mm - 40' HQ) High hoop: 950 × 2200 × 2200 mm - 20' (1000 × 2200 × 2500 mm - 40' HQ) L02 lockable bike rack: 1100 × 1400 × 2200 mm - 20' (1100 × 1400 × 2500 mm - 40' HQ) 700 mm base: 840 × 1140 × 2200 mm - 20' (840 × 1140 × 2500 mm - 40' HQ) 1050 mm base: 840 × 1140 × 2200 mm - 20' (840 × 1140 × 2500 mm - 40' HQ)
Packing Unit Weight	Low hoop: 455 kg - 20' (525 kg - 40' HQ) High hoop: 495 kg - 20' (575 kg - 40' HQ) L02 lockable bike rack: 650 kg - 20' (745 kg - 40' HQ) 700 mm base: 600 kg - 20' (685 kg - 40' HQ) 1050 mm base: 785 kg - 20' (885 kg - 40' HQ)

S02 + L02 Floor Bike Rack
MOQ	1 x full container load, mixed items allowed
Production Time	20–25 days after deposit
Warranty	1 year against manufacturing defects

S02 + L02 Floor Bike Rack for Secure Bike Parking

The S02 + L02 floor bike rack is manufactured from mild steel and hot-dip galvanised after welding for long-lasting outdoor use.

Each hoop supports the full bike wheel to reduce sideways tipping, while the L02 locking system adds a stronger locking hole for improved theft resistance.

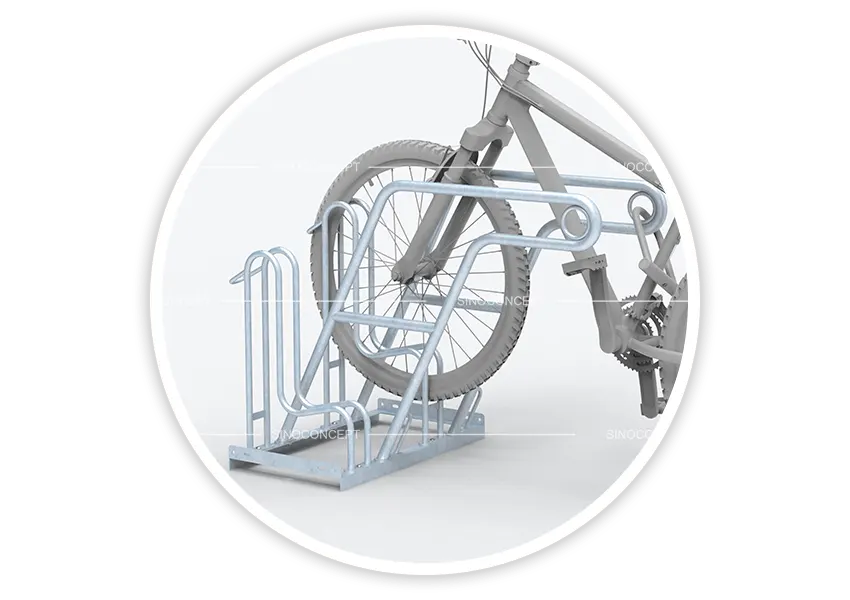

Outdoor bike stand made of hot-dip galvanised steel for long-lasting outdoor use

Other Outdoor Bike Stand Models for Different Site Needs

We also supply other models to match different site layouts and security requirements.

Picture	Model	Difference
	S02 Floor Bike Rack	Full-wheel support design for stable, managed parking runs, without a locking system.
	S02 + L01 Floor Bike Rack	Same design with custom-colour PE cover and locking hole for added security.

These bike stands can be used directly on the ground. For secure fixing, choose ground spikes for soft ground and L-shape angles for hard surfaces.

Get a Quote for Bulk Supply

Contact our team to request specifications, MOQ details, lead time, and packing information for bulk supply. Please share your required model(s), quantities, and delivery location for a quotation.
